THSN12U2.50B0.75R06

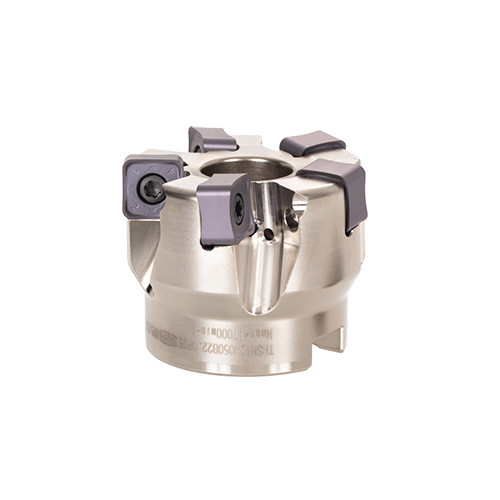

88 deg screw clamp type face mills with double sided square inserts.
Specifikacije proizvoda

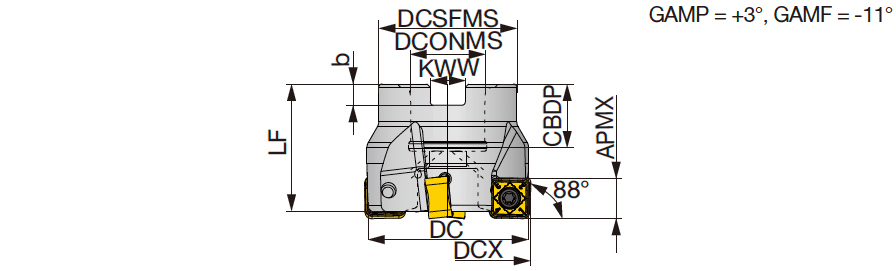

| Cutting Diameter (DC/DCX) | 2.524″ | Master Insert Identification (MIID) | SNMU120608HNEN-MM |
| Cutting Diameter (DC) | 2-1/2″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 2.524″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 6 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 0.374″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Functional Length (LF) | 1.575″ |
| Overall Length (OAL) | 1.575″ | Unit | I |
Značajke proizvoda
| FamilyDesc | 88 deg screw clamp type face mills with double sided square inserts. | FamilyName | THSN12 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
PackageWeight
0.0000
Name
Indexable Face Mills
FamilyName
THSN12
BrandName
Tungaloy
