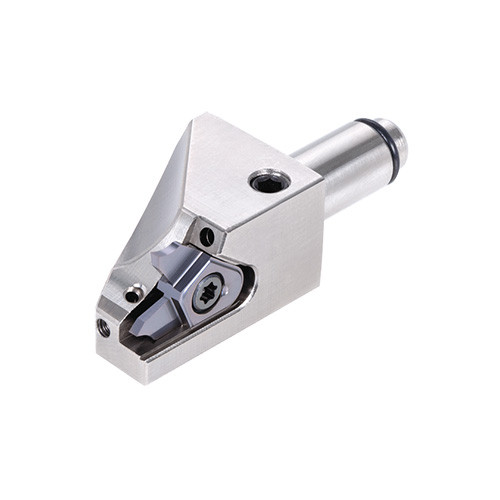

QC10-SVER10-CHP
Modular head for external grooving and threading, with high pressure coolant capability
Specifikacije proizvoda

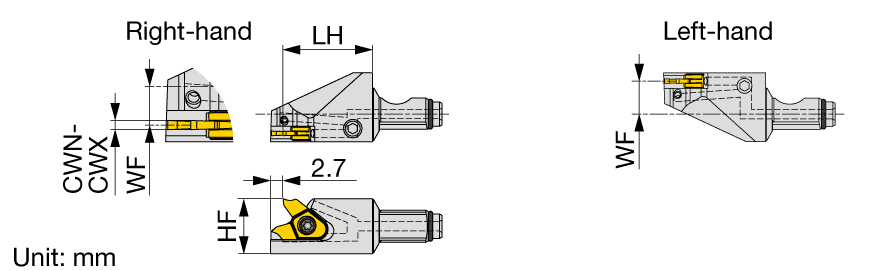

| Cutting Width Minimum (CWN) | 0.5 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 1 mm | Application | | Ext Threading | External grooving | |
| Shank Height (H) | 10 mm | Body Material | Steel |
| Shank Width (B) | 12 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 3.19 mm | Measurement Type | Metric |
| Functional Length (LF) | 17.4 mm | Unit | M |
| Head Length (LH) | 17 mm |
Značajke proizvoda
| FamilyDesc | Modular head for external grooving and threading, with high pressure coolant capability | FamilyName | QC-SVER/L-CHP |
| Remarks | "WF" indicates the distance from the reference position to the center of the cutting edge width. Through coolant head. For using internal coolant, please select both a through coolant head and a through coolant shank. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
PackageWeight
0.0000
Name
Groove/Turn Indexable Holders
FamilyName
QC-SVER/L-CHP
BrandName
Tungaloy
